Security — ozpanel operator reference

Layers

Layer	Mechanism
Node firewall	nftables from service declarations; default drop
Tenant network	Outbound policy matched by uid
Abuse	Kernel flood limits + CrowdSec, bans shared
People	3 roles, Argon2id, TOTP, CSRF, scoped tokens
Nodes	Cluster CA, mutual TLS, route allowlist
Secrets	AES-256-GCM, reveals audited
Change	Append-only audit log, signed releases

Firewall

Each module declares port, protocol, scope. The ruleset (inet ozpanel_fw) is derived. Scopes: public · peers · admin (management sources; open while none) · local.

Call	Does
`GET /nftables/plan`, `/nftables/enforcement`	Implied ruleset; per port: listening, reach, as declared
`GET/POST/DELETE /nftables/admin-sources`	Management sources; `scope` all \| console; says if you are covered
`GET /nftables/audit`, `POST {content}`	Lockout and exposure check
`POST /nftables/baseline/apply`, `/nftables/apply`	Apply; 20 s auto-revert unless `POST /nftables/confirm {token}`
`POST /nftables/persist`, `/reload`, `PUT /nftables/peers`	Persist; reload; resync peer sets

Flood limit (`/nftables/settings`)	Default
`conn_per_ip_smtp`	20
`conn_per_ip_mail_clients`	100
`syn_per_ip_per_sec`	100
`icmp_echo_per_sec`	20
`admin_console_restricted`	false

Ports

Scope	Ports
public	80, 443 tcp+udp, 53, 25, 587, 465, 143, 993, 110, 995
admin	22, 9600
peers	9601, 656, 3306 (+ container bridge), 4567, 4568, 4444, 4569, 5432, 6379, 26379, 26380, 3901
local	6432, 2019, 8081, 8080, 6060, 11332–11334, 10025, 10041, 4190, 24, 20000, 11211, 3900, 3903, 7680–7699
retired (closed)	24007 and bricks, 55555/udp (GlusterFS)

Operator · Firewall. — ozpanel screenshot — **Operator · Firewall.**

Tenant network policy

Table inet ozpanel_tenants, matched on socket uid; reject, not drop. Plan value, tenant override.

Field	Default
`outbound_default`	allow
`deny_ports`	25, 465, 587
`deny_cidrs`	169.254/16, 10/8, 172.16/12, 192.168/16, 100.64/10
`allow_ports`, `allow_cidrs`	empty (used when default is deny)
`listen_ports`	empty

Guard: every non-public declared port closed to all tenant uids, except 3306, 6432, 6379, 10025. /network-policy, …/tenants/{id}, …/plans/{id}, POST …/apply. /proc mounted hidepid=invisible.

CrowdSec

Engine, local API and firewall bouncer per node; decisions in PostgreSQL, shared. Bans stay in the kernel if the database is down. Hub auto-upgrade off.

Setting (`/crowdsec/settings`)	Default
`smtp_auth_fail_count` / `_window_min`	5 / 10
`silent_conn_count` / `_window_min`	10 / 10
`ban_base_hours` / `ban_max_hours`	4 (doubles) / 168
`trusted_login_hours`	24
Rule auto-upgrade	off
`log_level`, `log_media`, `compress_logs`, `prometheus_*`	info, file, true, full

Never banned: management sources, cluster nodes, recent successful logins. GET /crowdsec/decisions · POST …/decisions/add {"ip","duration","reason"} · …/delete.

SSH

GET/PUT /ssh/settings; drop-in, sshd -t, reload; sessions kept.

Key	Default
`port` (per node)	22
`permitrootlogin`	yes (install and join use it)
`passwordauthentication`, `pubkeyauthentication`	yes, yes
`maxauthtries`, `logingracetime`	6, 120
`x11forwarding`, `allowtcpforwarding`	yes, yes
`clientaliveinterval`, `clientalivecountmax`	0, 3

Restrict with management sources first, confirm keys, then tighten.

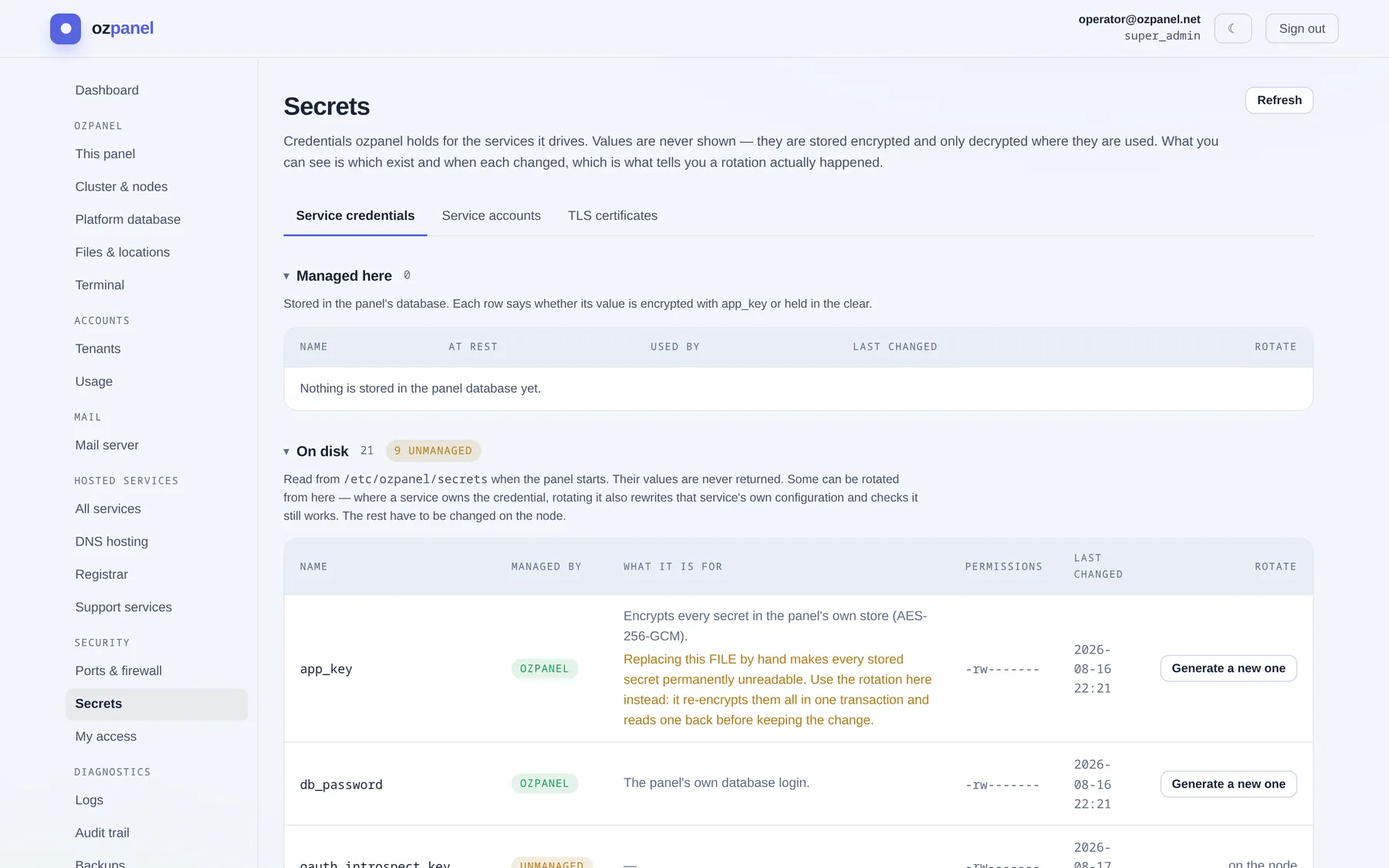

Secrets

Storespanel_secrets (replicated, AES-256-GCM under app_key) · /etc/ozpanel/secrets/ files.
CallsGET/POST /secrets, GET/DELETE /secrets/{name}, GET /secrets/files, POST /secrets/files/{name}/reveal (audited).
App keyPOST /secrets/app-key/rotate: secret store on this node. Cluster-wide coordinated rotation: not available.
Cluster secretsPUT /cluster/secrets/{name}, …/rollout, POST /cluster/secrets/pull. Service rotations: Redis ACL, PgBouncer, MariaDB, webmail DB.

Logins and sessions

Item	Value
Password hash	Argon2id, 64 MiB, 3 iterations, parallelism 2
Minimum length	10
Lockout	5 failures → 15 min; 20 per IP per 15 min → 429
2FA	TOTP, optional; 10 single-use recovery codes
Session	`ozpanel_session`, HttpOnly, SameSite=Lax; 12 h sliding (mailbox 30 days); CSRF header
Reset / invite	1 h / 7 days, single use; 3 per address per hour
Admin restriction	`admin_console_restricted`: super_admin sessions and tokens only from management sources. Break-glass: `ozpanel admin console-restriction off`.
Recovery token	`/etc/ozpanel/secrets/recovery_token`; recovery routes only
Recovery grants	`ozpanel admin recovery-grant --node N --allow diagnose\|recover\|force`

API tokens: see API · Tokens.

Audit log

Every mutating call, refusals and sign-ins: principal, role, tenant_id, module, action, params (≤1 MiB, unredacted), ok, ip, node. Append-only. GET /ozpanel/audit?module=&action=&principal=&since=&until= · /ozpanel/audit/export (HMAC-SHA256 signed).

Cluster key and releases

CA key/etc/ozpanel/pki/cluster-ca.key, 0600. On the master only. A successor that takes over becomes primary, not a CA holder; if the master is gone for good, import the CA on another node by hand. Never on shared storage.
SignsNode certs (ECDSA P-256, 90 days), declarations, releases.
ReleasesSignature verified before staging; unsigned refused. Members cannot fan out.
Node channel9601, mTLS, explicit route allowlist, fingerprint checked every call.
EvictionCerts revoked everywhere. Rotate cluster secrets after a hostile removal.

OS upgrades

os_auto_upgrades (/hosttune/settings): off by default; on = Debian unattended security upgrades daily. The panel itself: signed releases only.
